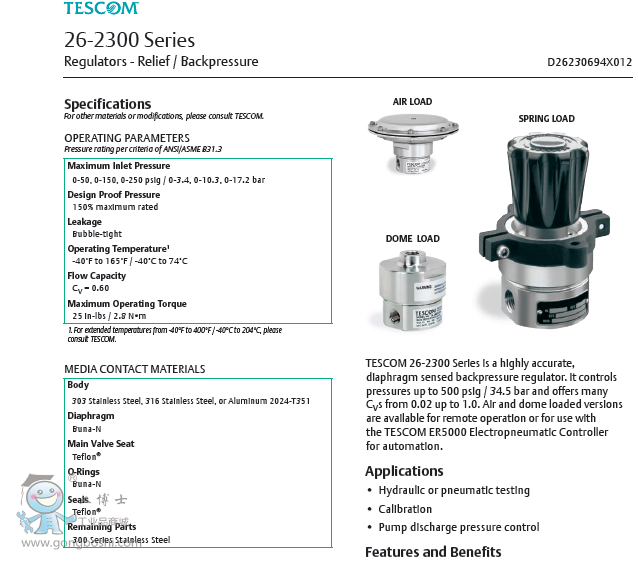

TESCOM 26-2300 Series is a highly accurate, diaphragm sensed backpressure regulator. It controls pressures up to 500 psig / 34.5 bar and offers many Cvs from 0.02 up to 1.0. Air and dome loaded versions are available for remote operation or for use with the TESCOM ER5000 Electropneumatic Controller for automation.
Applications
• Hydraulic or pneumatic testing
• Calibration
• Pump discharge pressure control
Features and Benefits
• Crack to reseat - 2% of set pressure
• Easily adjusted, low torque handknob control
• Bubble-tight shutoff at all reseat pressures
• Four flow capacities available:
Cv = 0.60 standard
Cv = 0.06, 0.12, 1.0 optional
• Spring, dome, and air loaded models are available
• Panel mounting is standard
• Compatible with TESCOM ER5000 Electropneumatic Controller
