The Flowserve ECPJ is a rugged, single-stage vertical lineshaft sump pump designed to perform tough jobs reliably, under a variety of difficult conditions. Based on a modular design system, the ECPJ pump provides dependable performance while offering maximum mechanical and hydraulic design flexibility. Fully compliant with ISO 13709/API 610 (VS4), latest edition, each ECPJ pump can be custom engineered for the specific application in which it will be used.A range of impeller and casing designs allows the pump’s hydraulic characteristics to be tailored to service requirements.
Pump Casing and Cover features metal to metal fit with fully confined, controlled compression gasket to endure proper sealing and alignment.
Dynamically Balanced Precision Cast Impeller limits vibration and ensures smooth operation over a wide flow range. An anti-rotation impeller nut positively locks the impeller to the shaft without exposing its threads to the pumped fluid.
ISO 21049/API 682 Seal Chambers allow for installation of cartridge style single and dual pressurized mechanical seals to meet required safety and environmental requirements.

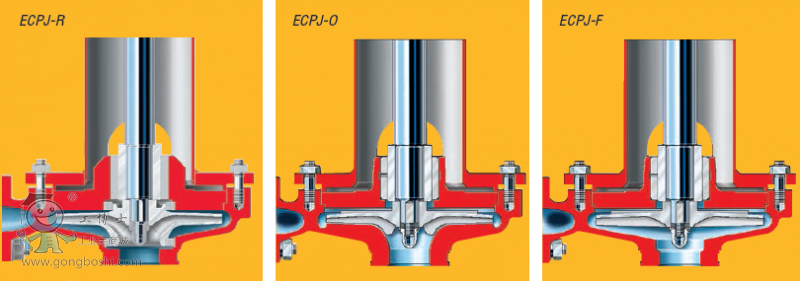

Multiple Hydraulic Designs
The ECPJ is available in three ISO 13709/API 610 compliant hydraulic designs. Impeller and casing configurations should be selected to suit application.
• ECPJ-R
– Closed multivane impeller with front and back wear rings
– Standard design suitable for most applications
• ECPJ-O
– Open multivane impeller with back vanes
– Suitable for handling soft particles like PTA applications
• ECPJ-F
– Free flow impeller with back vanes
– Recommended for enhanced solids handling capability
• ECPJ-L
– Barske-type, semi-open, radial impeller with
27 straight vanes
– Exceptional low-flow stability with continuously rising pump curve

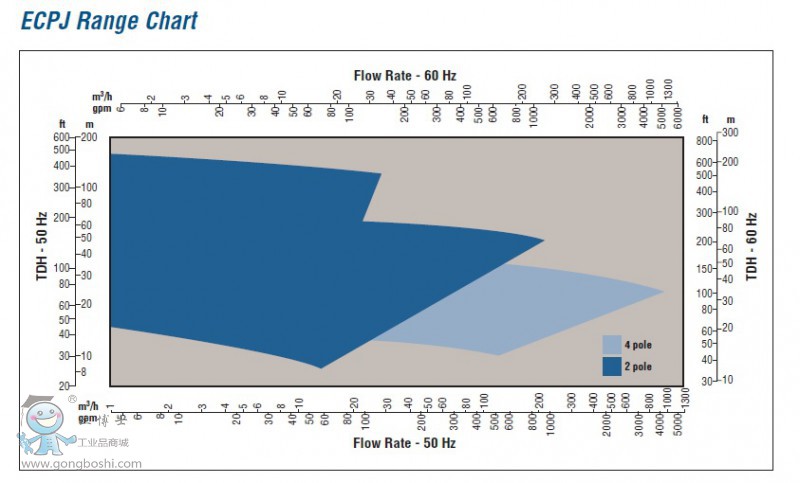

OPERATING PARAMETERS
• Flows to 1000 m3/h (4400 gpm)
• Heads to 150 m (500 ft)
• Pressures to 20 bar (285 psi)
• Temperatures to 350°C (660°F)
• Column lengths to 8 m (26 ft)
• 45 sizes available
