X2 base 10

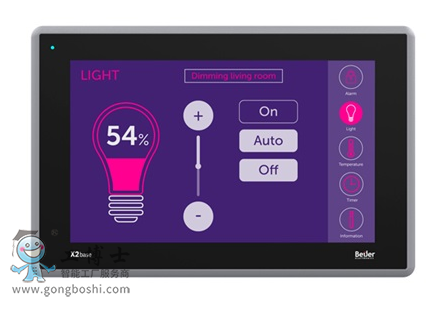

10'' HMI with iX software

• 800 × 480 pixel (16:9)
• TFT-LCD touch screen
• 200 MB application memory
• 1 × Ethernet, 4 × serial, 1 × USB as standard
• Operating temperature -10° to +50° C
• CE, FCC, KCC, UL approvals

• Facts

  General description

  Part number	630005305
  Part status	Active
  Warranty	2 year

  Certifications

  General

  CE, FCC, KCC, UL 61010-2-201

  Mechanical

  Mechanical size	284 x 187 x 52mm
  	Panel Mount
  	1million finger touch operations
  Touch type	Resistive
  Cut-out size	275 x 177
  Weight	1.3 kg
  Housing material	Plastic (PC+ABS), Gray

  Power

  Input voltage	24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
  Power consumption (max)	10.8W
  Input fuse	Internal DC fuse



  CPU	AR*** 400 MHz
  RAM	128 MB
  FLASH	256 MB, 200 MB free

  Display

  Size diagonal	10.1" diagonal
  Resolution	800x480 pixels
  Backlight	LED Backlight
  Backlight life time	20000 hours
  Backlight brightness	350 cd/m²
  Backlight dimming	Industrial Dimming
  Display type	TFT-LCD with LED backlight

  Communication serial

  Number of serial ports	2 Port 9pin DSUB
  Serial port 1	RS 232 (RTS/CTS)
  Serial port 2	RS422/485
  Serial port 3	RS 232
  Serial port 4	RS 485

  Ethernet communication

  Number of Ethernet ports	1
  Ethernet port 1	1x10/100 Base-T (shielded RJ45)

  Expansion interface

  Expansion port	No
  SD card	No
  USB	1xUSB 2.0 400mA

  Environmental

  Operating temperature	-10°C to +50°C
  Storage temperature	-20° to +60°C
  Shock	15g, half-sine, 11ms according to IEC60068-2-27
  Vibration	1g, according to IEC 60068-2-6, Test Fc
  Sealing front	IP65, NEMA 4X/ 12 and UL Type 4X/ 12
  Sealing back	IP20
  Humidity	5% – 85% non-condensed
