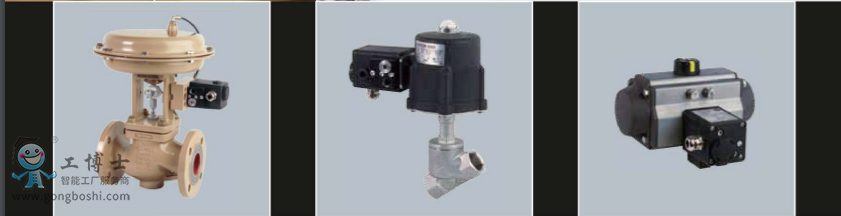

SAMSON薩姆森電磁閥3967系列操作說明書

點擊圖片查看原圖
品牌: 薩姆森
額定信號: 6/12/24 VDC
材質: 鋁或不銹鋼
單價: 888.00元/臺
所在地: 上海
有效期至: 長期有效
最后更新: 2022-02-17 14:11
瀏覽次數: 376
店鋪基本資料信息
  • 薩姆森samson調節閥
  • 聯系人申寧/胡小麗(先生) 銷售工程師
  • 會員 [當前離線]
  • 郵件hxl_gbs@163.com
  • 電話13052212751
  • 地址上海市寶山區富聯一路98弄6號

產品詳細說明

SAMSON薩姆森電磁閥3967系列操作說明書


       SAMSON薩姆森電磁閥3967系列優勢特點防爆類型"本質安全”,符合IEC 61508的安全功能(SIL),符合ISO 13849的Performance Level (PL),直行程和角行程執行機構的控制。

SAMSON薩姆森電磁閥3967系列配置閥體和執行器

Responsibilities of the operator


      The operator is responsible for proper operation and compliance with the safety regulations.Operators are obliged to provide these mounting and operating instructions as well as thereferenced documents to the operating personnel and to instruct them in proper operation.Furthermore, operators must ensure that operating personnel or third persons are not ex-posed to any danger.

 Responsibilities of operating personnel

      Operating personnel must read and understand these mounting and operating instructions aswell as the referenced documents and observe the specified hazard statements, warnings

      and caution notes. Furthermore, the operating personnel must be familiar with the applicablehealth, safety and accident prevention regulations and comply with them.

Servicing explosion-protected devices

      If a part of the device on which the explosion protection is based needs to be serviced, thedevice must not be put back into operation until a qualified inspector has assessed it accord-ing to explosion protection requirements, has issued an inspection certificate, or given thedevice a mark of conformity. Inspection by a qualified inspector is not required if the manu-


SAMSON薩姆森電磁閥3967系列操作說明書
額定信號6/12/24 VDC
功耗6-27 mW切換功能2位3通
Kys 0.32至4.3
材質Polyamide(先導閥),鋁或不銹鋼(增壓閥)安裝使用連接塊直接裝配到直行程執行機構
按照IEC 60534-6裝配到帶NAMUR rib的直行程執行機構按照VDI/VDE 3845裝配到NAMUR接口的角行程執行機構。
