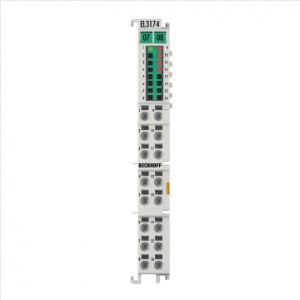

倍福EL3174 | EtherCAT Terminal, 4-channel analog inp

點擊圖片查看原圖

店鋪基本資料信息

產品詳細說明

本公司專業銷售德國Beckhoff倍福PLC、PC、模塊IO等產品，價格美麗，庫存充足，歡迎來電咨詢~

Technical data EL3174

Number of inputs 4

Power supply via the E-bus

Technology U differential, I single-ended

Signal type differential

Oversampling factor –

Distributed clocks yes

Distributed clock precision << 1 µs

Internal resistance > 200 kΩ | typ. 85 Ω

Input filter limit frequency 5 kHz

Common-mode voltage UCM max. 35 V (voltage measurement)

Dielectric strength max. 30 V (current measurement)

Conversion time minimum 150 µs

Measuring range, nominal -10/0…+10 V | -20/0/+4…+20 mA

Measuring range, technical -10.73…+10.73 V | -21.47…+21.47 mA

Resolution 16 bit (incl. sign)

Measurement error/ uncertainty < ±0.3 % (relative to full scale value)

Electrical isolation 500 V (E-bus/signal voltage)

Current consumption power contacts load-dependent

Current consumption E-bus typ. 180 mA

Bit width in the process image inputs: 16 byte

Configuration no address or configuration setting

Special features U/I parameterizable, ExtendedRange, standard and compact process image, activatable FIR/IIR filters

Weight approx. 65 g

Operating/storage temperature -25…+60 °C/-40…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Approvals/markings CE, UL, ATEX, IECEx, cFMus

Ex marking ATEX:
  II 3G Ex ec IIC T4 Gc
IECEx:
  Ex ec IIC T4 Gc
cFMus:
  Class I, Division 2, Groups A, B, C, D
  Class I, Zone 2, AEx ec IIC T4 Gc

Technical data

Housing data

To top

Housing data EL-12-16pin

Design form HD (High Density) housing with signal LEDs

Material polycarbonate

Dimensions (W x H x D) 12 mm x 100 mm x 68 mm

Installation on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of double slot and key connection

Marking labeling of the BZxxx series

Wiring solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver

Connection cross-section s: 0.08…1.5 mm²,
st: 0.25…1.5 mm²,
f: 0.14…0.75 mm²

Connection cross-section AWG s: AWG 28…16,
st: AWG 22…16,
f: AWG 26…19

Stripping length 8…9 mm

Current load power contacts Imax: 10 A

Technical data	EL3174
Number of inputs	4
Power supply	via the E-bus
Technology	U differential, I single-ended
Signal type	differential
Oversampling factor	–
Distributed clocks	yes
Distributed clock precision	<< 1 µs
Internal resistance	> 200 kΩ \| typ. 85 Ω
Input filter limit frequency	5 kHz
Common-mode voltage UCM	max. 35 V (voltage measurement)
Dielectric strength	max. 30 V (current measurement)
Conversion time	minimum 150 µs
Measuring range, nominal	-10/0…+10 V \| -20/0/+4…+20 mA
Measuring range, technical	-10.73…+10.73 V \| -21.47…+21.47 mA
Resolution	16 bit (incl. sign)
Measurement error/ uncertainty	< ±0.3 % (relative to full scale value)
Electrical isolation	500 V (E-bus/signal voltage)
Current consumption power contacts	load-dependent
Current consumption E-bus	typ. 180 mA
Bit width in the process image	inputs: 16 byte
Configuration	no address or configuration setting
Special features	U/I parameterizable, ExtendedRange, standard and compact process image, activatable FIR/IIR filters
Weight	approx. 65 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL, ATEX, IECEx, cFMus
Ex marking	ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc

Housing data	EL-12-16pin
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxx series
Wiring	solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG 28…16, st: AWG 22…16, f*: AWG 26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
