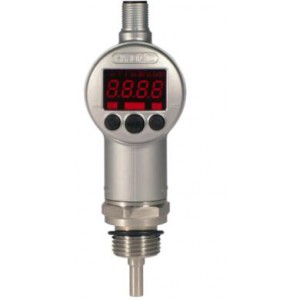

ETS 3200是一款具有數字顯示的緊湊型電子溫度開關。
憑借其集成的溫度探頭，ETS 3200特別適合直接油箱安裝，并有多種長度可供選擇。
具有一個或兩個開關輸出和可選的附加模擬輸出信號的不同輸出版本，提供了多種應用可能性。
使用按鍵板可以非常快速和輕松地調整開關點和相關的滯后。
Type
|
Electronic Temperature Switch |
Model Code Description
|
ETS 3226-2-018-000 |
Direct Current (DC) Supply Voltage When Applied According to UL Specifications (Without Analog Output)
|
9 to 35 V |
Note for Direct Current (DC) Supply Voltage When Applied According to UL Specifications
|
Limited energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950 |
Maximum Current Consumption (With Inactive Switching Output)
|
35 mA |
Maximum Current Consumption (With Inactive Switching Output and Analog Output)
|
55 mA |
Display
|
4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm |
Weight
|
~135 g |
Material of Connection
|
Stainless Steel |
Seal Material
|
Fluoroelastomer (FKM) |
Maximum Output Permitted Load Resistance
|
500 |
Minimum Output Permitted Load Resistance
|
1 k |
Switching Function
|
Switching direction of the switching outputs adjustable (N/C or N/O) |
Electrical Connection
|
Male M12x1, 4 Pole |
CUL®US Mark
|
Certificate No.: E318391 |
Note for CUL®US Mark
|
Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1 |
Switch Point
|
-23 to 100 ºC-9 to 212 ºF |
Hysteresis (Switch Point)
|
1.0 to 123.5 ºC2 to 222 ºF |
Residual Ripple of Supply Voltage
|
≤ 5 % |
Increment (Switch Point)
|
0.5 ºC1.0 ºF |
Note for Increment (Switch Point, Window Function)
|
All ranges given in the table can be adjusted by the increments shown. |
Lower Switch Value (Window Function)
|
-23 to 97.5 ºC-9 to 208 ºF |
Upper Switch Value (Window Function)
|
-22 to 98.5 ºC-7 to 209 ºF |
Increment (Window Function)
|
0.5 ºC1.0 ºF |
Maximum Total Current Consumption
|
2.455 A |
Modification Number
|
000 |
Switching Outputs
|
2 Switching Outputs |
Division
|
17 |
BUn
|
EA |
Measuring Range
|
-25 to 100 ºC-13 to 212 ºF |
Input Probe Length
|
0.71 in18 mm |
Input Pressure Resistance
|
8700 psi |
Input Mechanical Connection
|
G1/2 A DIN 3852 (Male) |
Torque Value
|
45 N·m33 lb·ft |
Input Mechanical Connection Type
|
G1/2 A DIN 3852, Male |
Input Mechanical Connection Size
|
G1/2, Male |
Accuracy at Room Temperature
|
≤ ± 2.0ºF (+/- 1.0ºC) |
Operating Temperature [Min]
|
-25 ºC-13 ºF |
Operating Temperature [Max]
|
100 ºC212 ºF |
Output Temperature Drift at Maximum Zero Point and Range (Full Scale)
|
≤ ± 0.0085% %/°F |
Switch Outputs Type
|
PNP Transistor Switching Output |
Maximum Switching Current Per Switch Output
|
1.2 A |
Switching Cycles In Million
|
> 100 million |
Rise Time to DIN EN 60751 for t50
|
3 s |
Rise Time to DIN EN 60751 for t80
|
9 s |
Ambient Temperature Range
|
-13 to 140 ºF |
Ambient Temperature Range
|
-13 to 176 ºF |
Sensing Temperature [Max]
|
100 ºC212 ºF |
Sensing Temperature [Min]
|
-25 ºC-13 ºF |
Storage temperature range
|
-40 to 176 ºF |
Fluid temperature range
|
-13 to 212 ºF |
Note for Fluid Temperature Range
|
-13 °F with FPM seal, -40 ºF on request |
CE Mark
|
CE Mark EN 61000-6-1/2/3/4 |
Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz
|
≤ 10 g |
Shock Resistance According to DIN EN 60068-2-29 (11 ms)
|
≤ 50 g |
Protection class to IEC 6529
|
IP 67 |
Pin Connection 1
|
+UB |
Pin Connection 2
|
SP2 |
Pin Connection 3
|
0 Voltage |
Pin Connection 4
|
SP1 |
Sensor Diameter
|
6 mm |
Sensor Length
|
18 mm |
Length
|
42 mm |
Width
|
40.4 mm |
|
All the settings available on the ETS 3200 are combined in 2 easy-to navigate menus. To prevent unauthorized adjustment of the instrument, a programming lock can be set.
|
|
For optimum adaptation to the particular application, the instrument has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).
|
|
Appropriate accessories, such as electrical connectors, protective sleeves for tank mounting, splash guards, etc. can be found in the Accessories brochure.
|
|
- 2 switching outputs, up to 1.2 A load per output.
- Optional analog output signal selectable (4 .. 20 mA, 0 .. 10 V)
- 4-digit display
- Optimum alignment - display can be rotated in two planes (axes)
- Switching / switch-back points and many useful additional functions can be set using the keypad.
- Display of temperature and unit of measurement in ºC or ºF
- Switching mode of the switching outputs adjustable (switching point function or window function)
- Switching direction of the switching outputs adjustable (N/C or N/O)
- Switch-on and switch-off delay adjustable from 0.00 .. 99.99 seconds
- Choice of display (actual temperature, peak temperature, switching point 1, switching point 2, display off)
|
|
Reverse polarity protection of the supply voltage, excess voltage, override and short circuit protection are provided.
Subject to technical modifications.
|
